Abinitio Publish to Plan | Graph calling plan - How graph can call/comm...




Conduct It > - Graph calling plan - How graph can call/communicate plan
                           Publisher - Subscriber - Pub Sub mechanism in Abinitio


Please view my video as below:



There are 2 ways where we can fit in Publish to plan mechanism

1. Batch Graph -> Subscribe Looping Plan
2. Publisher   -> Subscribe Looping Plan

1. Batch Graph -> Subscribe Looping Plan are below:


a. Create a Plan  named as "$AI_PALN/mysubscriber.plan"

b. Add Subplan in "$AI_PALN/mysubscriber.plan" and Make it Looping plan - Subscribe Loop plan

c.. Create New Graph named "$AI_MP/plan_to_sbscribe.mp" and build as it as below-:

Create Data -> Reformat -> Publish to Plan
count=10
out::create(index)=
begin
out.plan_name:1:if(index==0) "a.pset";
out.plan_name:2:if(index==1) "b.pset";
out.plan_name:3:if(index==2) "c.pset";
out.plan_name:4:if(index==3) "d.pset";
out.plan_name:5:if(index==4) "e.pset";
out.plan_name:6:if(index==5) "f.pset";
out.plan_name:7:if(index==6) "g.pset";
out.plan_name:8:if(index==7) "h.pset";
out.plan_name:9:if(index==8) "i.pset";
out.plan_name:10:if(index==9)"j.pset";
    end;

Reformat - out.*::in.*;
    Publish to Plan
                   subscribe_loop = /MySubplan

d. Add Graph Task in "$AI_PALN/mysubscriber.plan" and call the graph "$AI_MP/plan_to_sbscribe.mp"

e. Open the properties of Subplan of point#2 ,Properties-> Loop Type=Subscribeloop
    Open the Subplan
Add graph task in the Subplan (Subscribeloop)
    Open properties->graph=$AI_PSET/AB_PALN_LOOP_CURRENT_VALUE

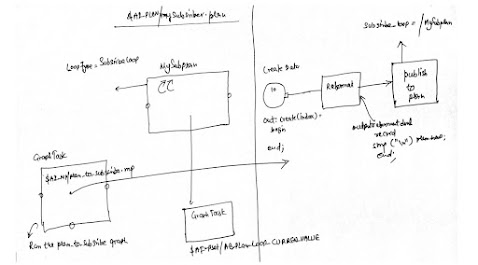

please see the diagram below:



2.  Publisher   -> Subscribe Looping Plan


Subscribe -> Reformat -> Publish to Plan

Subscribe -> Reformat ->Publisher (Into Queue)

Subscribe to Queue -> Publish to Plan
